ELECTRICAL WORK SHOP PRACTICE LABORATORY

LAB IN-CHARGE: Sri. G.B. Sankara Rao
LAB TECHNICIAN: Sri. Y. Srinivasa Rao
LABORATORY AREA: 131 sq. meters

To develop practical workshop skills in the students.

• Knowledge and Comprehension
  The course is designed to provide students a widespread knowledge and understanding of the workshop tools and other facilities. The indispensable and pervasive knowledge of electrical wiring.
• Applications and Analytical Skills
  To grasp the applications of workshop equipment, wiring accessoriesimportance in the practical field.

COURSE OUTLINE:

Concepts in electrical safety, safety regulations, earthing concepts, electrical shocks and treatment.

Electrical Wiring: voltage and current measurement, transformer windings (low voltage: 6,9 and 12 volts), motor and generator windings (concept only).

- The main aim of this lab is students should acquire the knowledge of fans, tubelights, compoundterminals, transformer etc ..
- Students should be famililier to all domestic terminals.

Major Equipment

• 2KVA 230V/115V WITH 86.6%,50%100% TAPPING'S

• 25 KVA 11KV/400V OIL COOLED TRANSFORMER

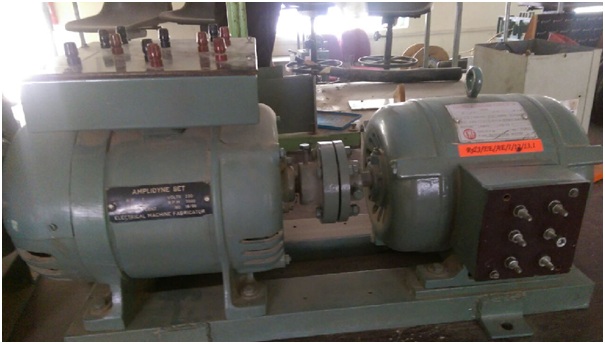

• DC SHUNT MOTOR GENREATOR SET

• 2 HP SLIP RING INDUCTION MOTOR

• SINGLE PHASE CAPCITOR START AND RUN MOTOR

• 2 HP SQUIRREL CAGE INDUCTION MOTOR

• 5 HP DOUBLE CAGE INDUCTION MOTOR

• 3 PHASE POLE CHANGE INDUCTION MOTOR

• MULTIMETERS

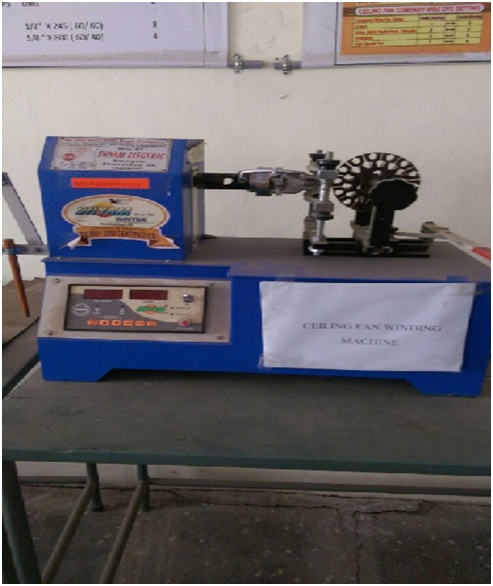

• CEILING FAN COIL WINDING MACHINE

• TABLE FAN COIL WINDING KIT

• TOOL KIT

• BEARING PULLER

• WIRE GAGE MEASUREMENT RING

• CRIMPING TOOL KIT

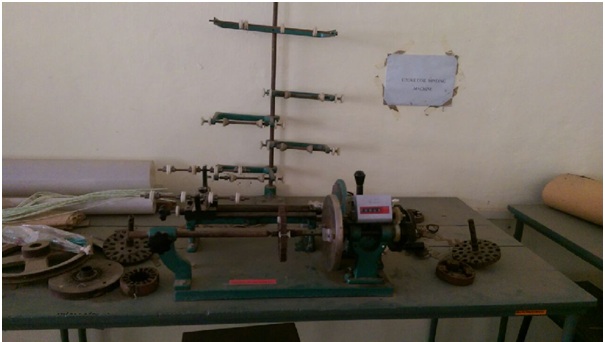

• SMALL MOTOR COIL WINDING KIT

• CHOKING COIL WINDING

• TRANSFORMER HT/LT COIL WINDING MACHINE

• MEGGER 1000/2000 MEGE VOLTS

• DC/AC CLAMP METER

• MICRO METER

• WEIGHING MACHINE

• WOODEN FORMERS

Following is the set of experiments that can be conducted with the equipment available in Lab.

1. Measurement of earth resistance by earth resistance tester & fall of potential method.
2. Assembling and testing of AC regulator and three point starter.
3. Assembling and testing of Ceiling fan.
4. Assembling and testing of various components of fluorescent lamp
5. Identification of terminals of DC compound motor
